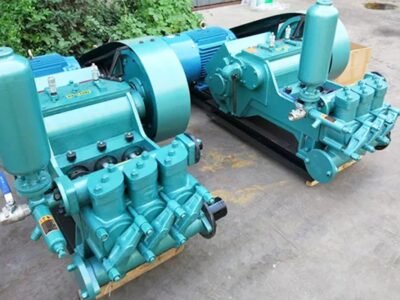

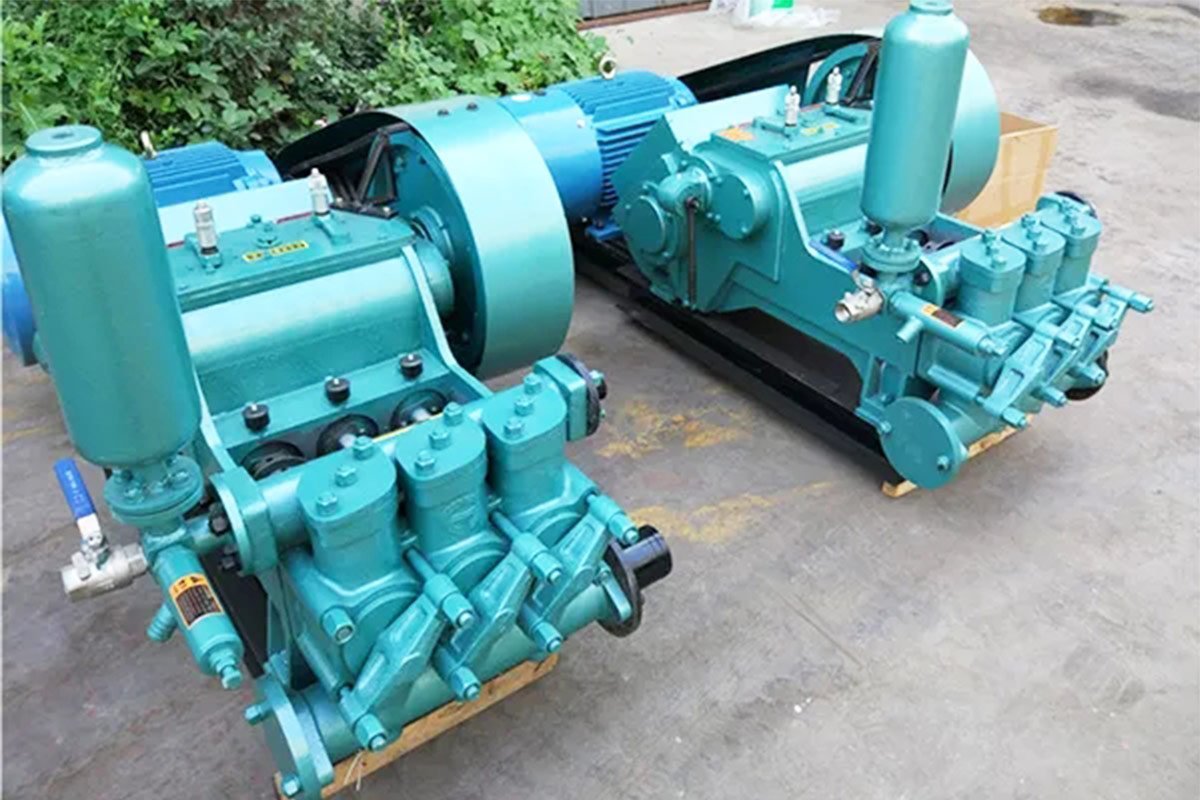

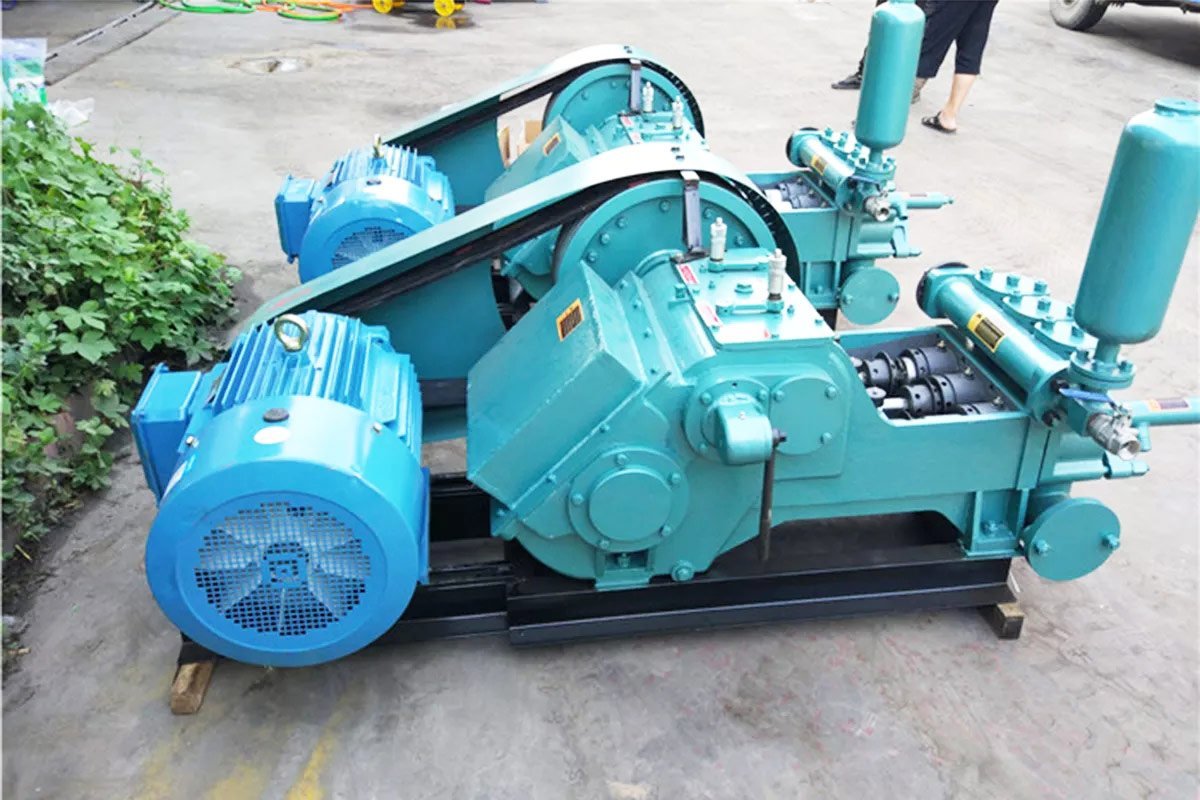

BW Series Mud Pump

Max. flow: 150L/min~ 320L/min | Max. pressure: 7Mpa~10Mpa | Power: 7.5kw~30kw

Get a Quote

BW Series Mud Pump:

1. BW mud pump is widely used for grouting and mud jacking in engineering construction.

2. BW mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with drilling machine.

3. BW mud pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration.

BW Series Mud Pump Features:

1. BW mud pump is horizontal triplex grout pump with high stability and high pressure.

2. Eight gear shift to adjust the flow, large output capacity, simple operation.

3. High quality pump parts, less wearing parts, long service life, low construction cost.

4. Fast suction-discharge speed, high pump efficiency.

5. Less noise and dust, environmental operation.

Model BW150 BW160 BW250 BW320
Max. flow 150L/min 160L/min 250L/min 320L/min
Max. pressure 7Mpa 10Mpa 6Mpa 8Mpa
Power 7.5kw 11kw 15kw 30kw
Inlet pipe diameter 51mm 51mm 76mm 76mm
Outlet pipe diameter 32mm 32mm 51mm 51mm
Weight 560kg 480kg 760kg 1000kg
