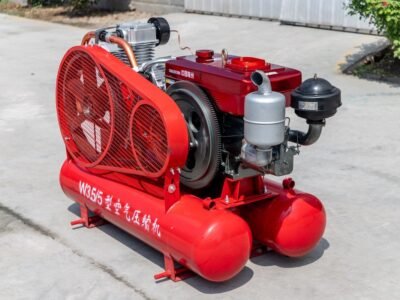

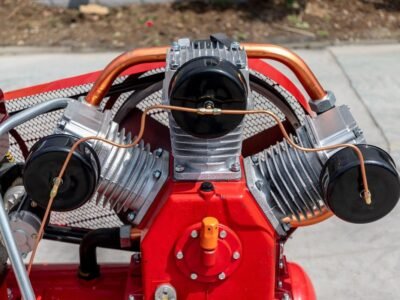

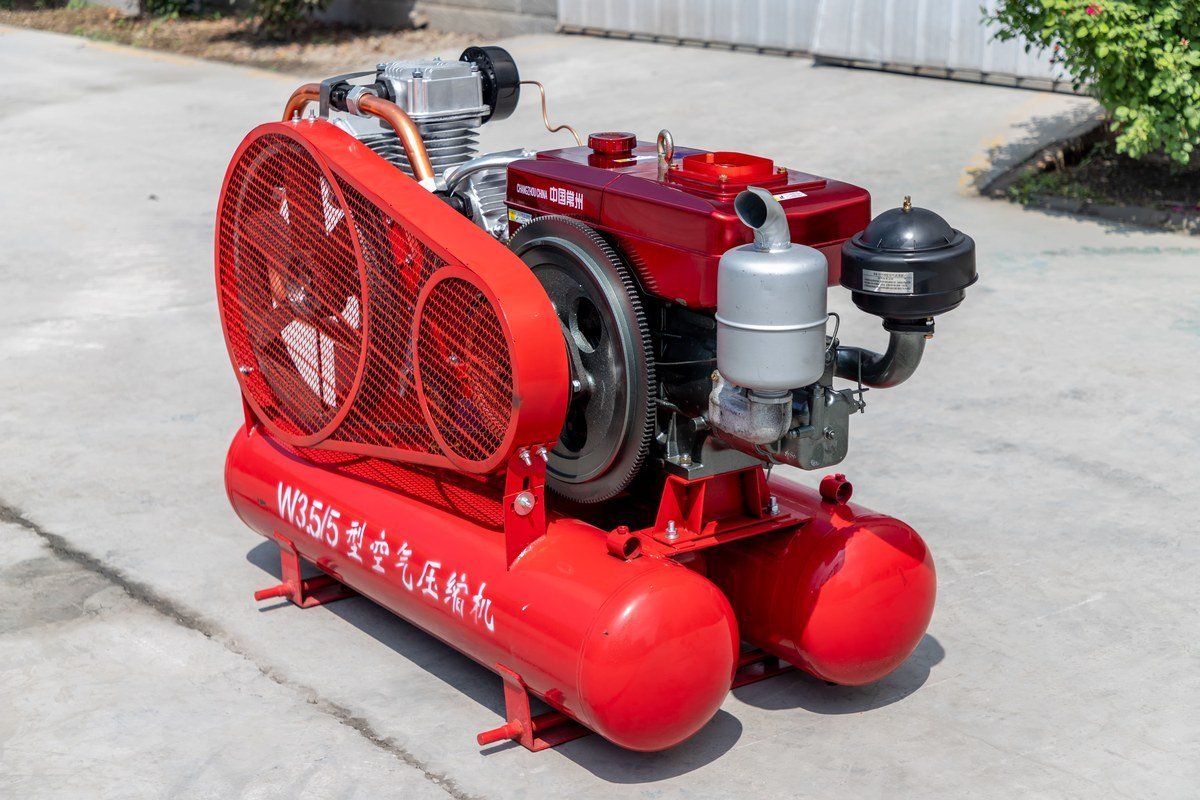

HW-3.5/5 Air Compressor

HW-3.5/5 Air Compressor - Image 2

HW-3.5/5 Air Compressor

Exhaust volume??3.5 m3/min | Exhaust pressure: 0.5Mpa | Drive mode??Diesel engine driven

Category: Accessories of HengWang Machine

Description

Model	Capacity (m3/min)	Exhaust pressure (Mpa)	Model of engine	Weight (Kg)	Dimensions (mm)
HW5/8	5	0.8	YNE143RA/4DW91-56G2	1400/1300	2050??1000??1250
HW10/8	10	0.8	YCD4T22T-105A	1700	1900??1306??1552
HW13/8	13	0.8	YC4DK120-T301	1750	2441??1806??2059
HW15/15-1	15	1.5	QSB5.9-C190-31	2500	3050??2182??2500
HW15/15-2	15	1.5	6DF1-20GAG2	2450	3080??1650??2000
HW15/15-3	31	1.5	YC6J190-H300	2600	3250??1610??2470
HW60 18/18	18	1.8	QSB5.9-C220-30	2400	2900??1605??1797
HW19/20	19	2.0	6CTA8.3-C260	3200	2920??1780??2622
HW24/22	24	2.2	YC6L310-H300	3800	3200??1800??2285
HW29/23-1	29	2.3	CA6DL2-35G31-YM10?	3600	3100??1900??1950
HW29/23-2	29	2.3	6DL2-35KG31-YM10	3900	3500??1980??2260
HW29/24	29	2.4	YC6MK400-H300	4200	3776??2000??2032
HW31/25-1	31	2.5	CA6DM2-42GAG2	4200	3500??2000??2150
HW31/25-2	31	2.5	CA6DM2-42GAG31-YM10	4200
