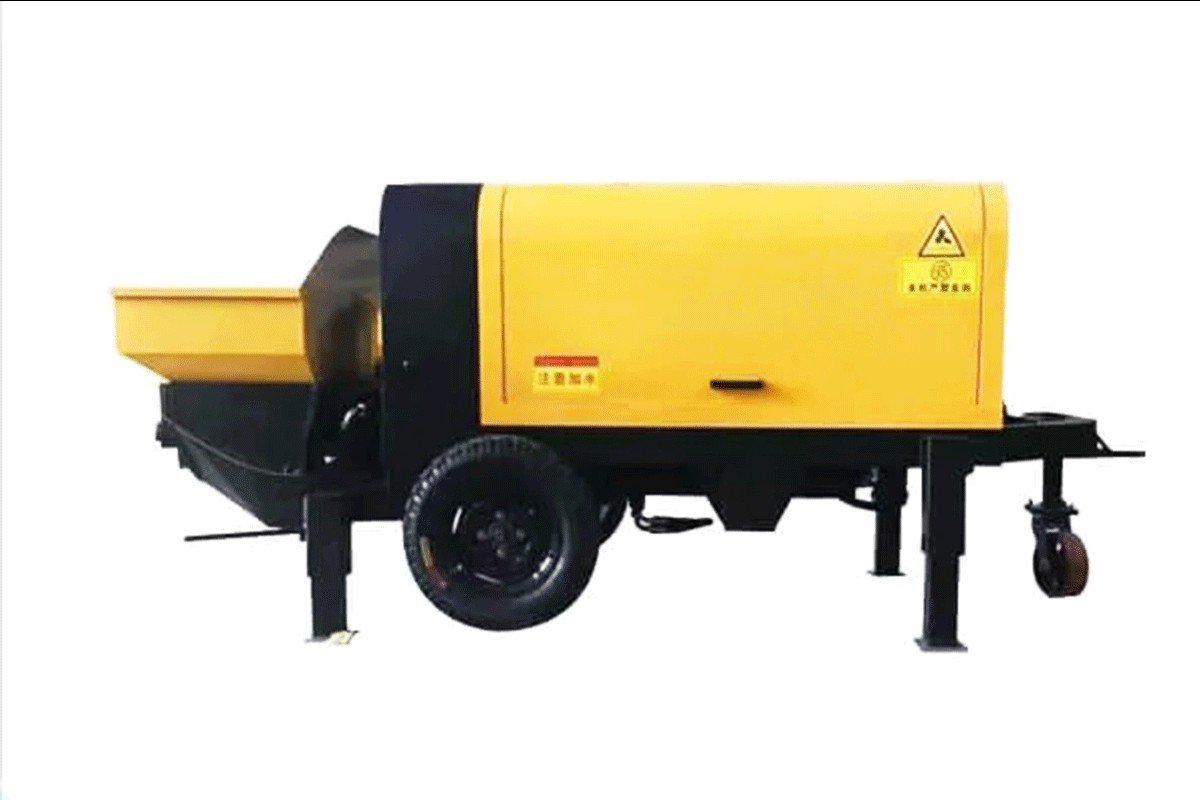

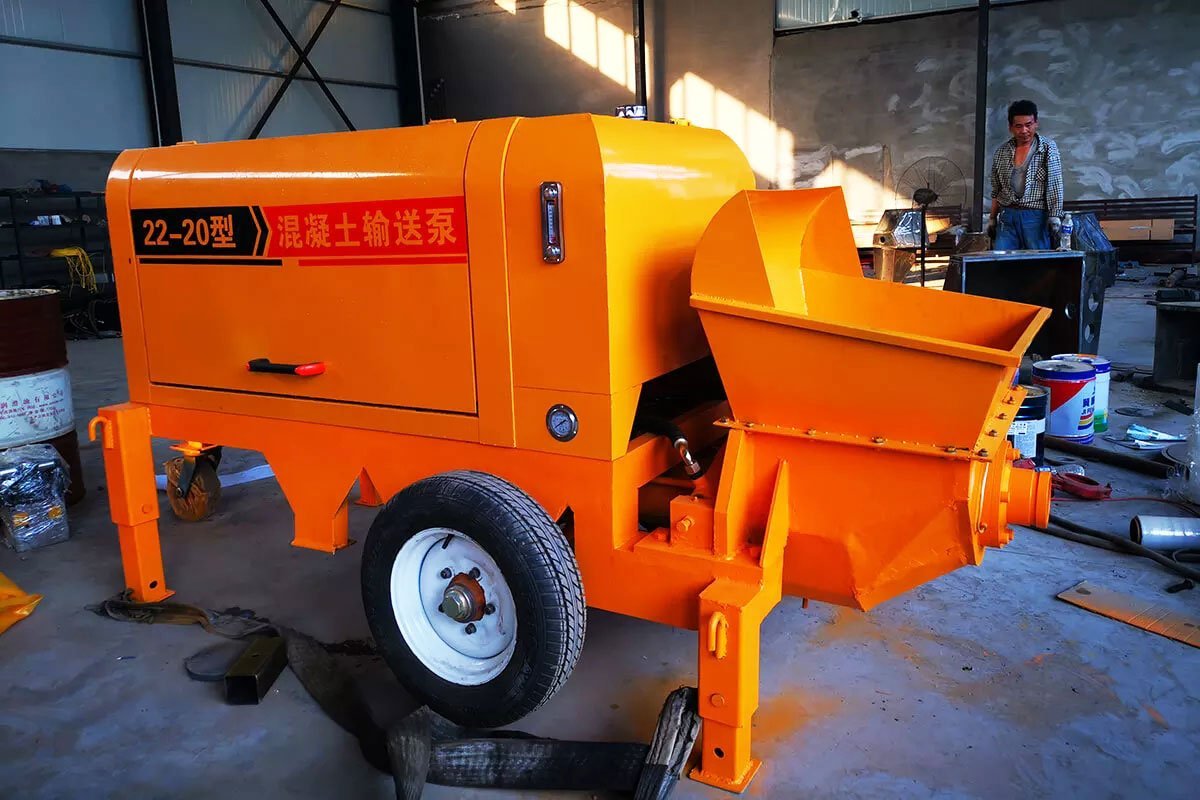

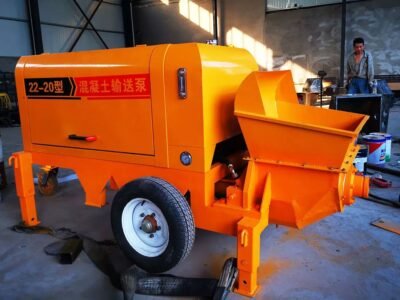

HW20-22 Concrete Pump

Rated Power: 22Kw | Aggregate size: 20mm | Output: 12m3/h

Get a Quote
1. Advanced s-tube valve is adopted to meet the delivery of concrete;

2. The glasses plate and cutting ing are made of high hardness and wear resisting allay material, with longer service life;

3. Import main oil pump with high output pressure can meet high-rise buildings and distance transportation requirements

4. The hydraulic oil is cooled by air cooling system, which has good cooling effect and is easy to use;

Model

HW20-22

Power

22kw

Voltage

380V

Vertical delivery distance

50m

Horizontal delivery distance

80m

Output

12m3/h

Max.Aggregate size

20mm

Outlet diameter

120mm

Cylinder stroke

650mm

Pipe diameter

100mm

Dimension

2100*780*1200mm

Weight

900kg
