1. High working efficiency: hydraulic pumping is adopted, with high system reliability and stable throughput.
2. Continuously adjustable injection amount: variable plunger pump is adopted for the main oil pump, and the injection speed can be freely adjusted.
3. The addition amount of accelerating agent can be continuously adjusted: it can be adjusted according to the amount of gunite.
4. Long service life of wearing parts: the service life of wearing parts of the host shall not be less than 4000M3.
5. equipped with automatic lubrication system: for the main sealing parts with automatic lubrication, grease filling amount, filling time automatic control, greatly extend the life of vulnerable parts.
6. Humanized product design: more convenient operation.
|

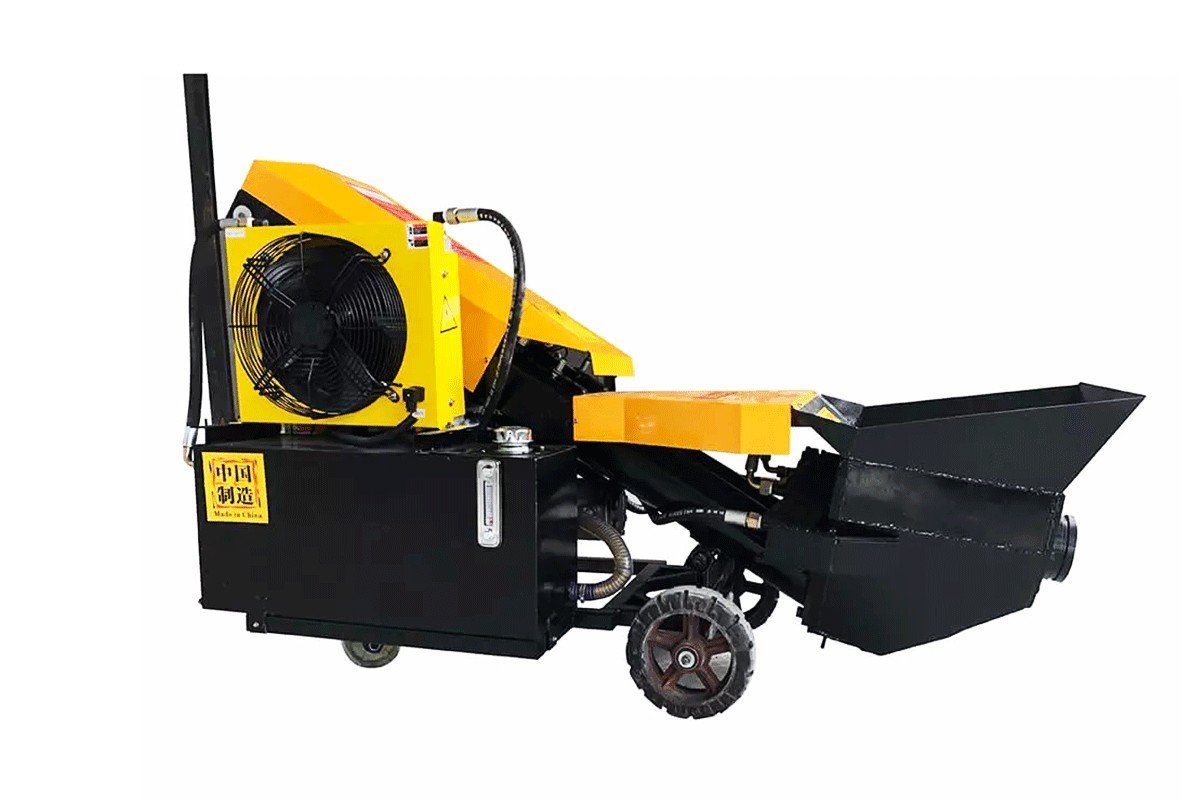

Model |
HWJP-20 |
|
Power |
30kw |
|
Voltage |
380V |
|
Vertical delivery distance |
50m |
|
Horizontal delivery distance |
80m |
|
Output |
8m3/h |
|
Max.Aggregate size |
15mm |
|
Outlet diameter |
100mm |
|
Cylinder stroke |
1000mm |
|
Pipe diameter |
100mm |
|
Dimension |
3800*1000*1550mm |
|
Weight |
900kg |
