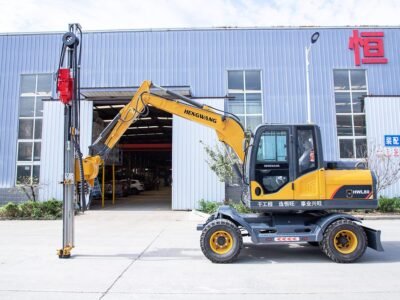

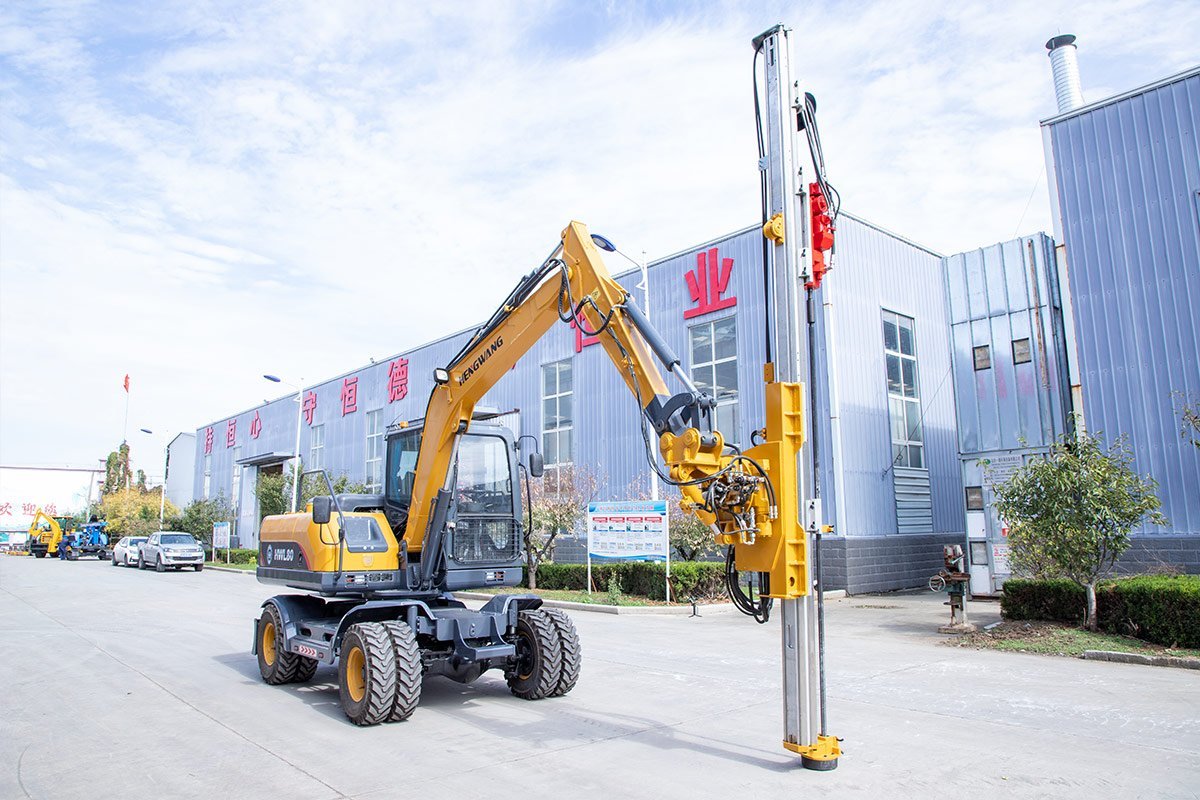

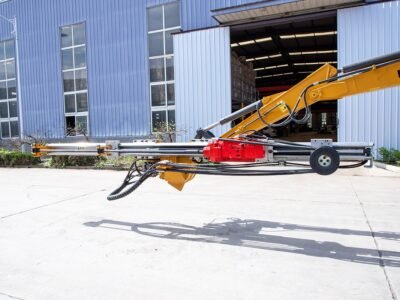

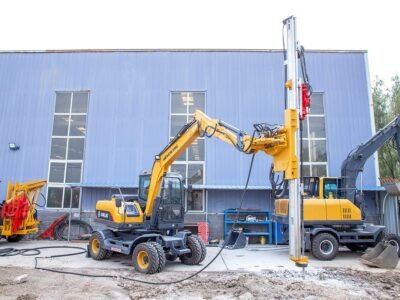

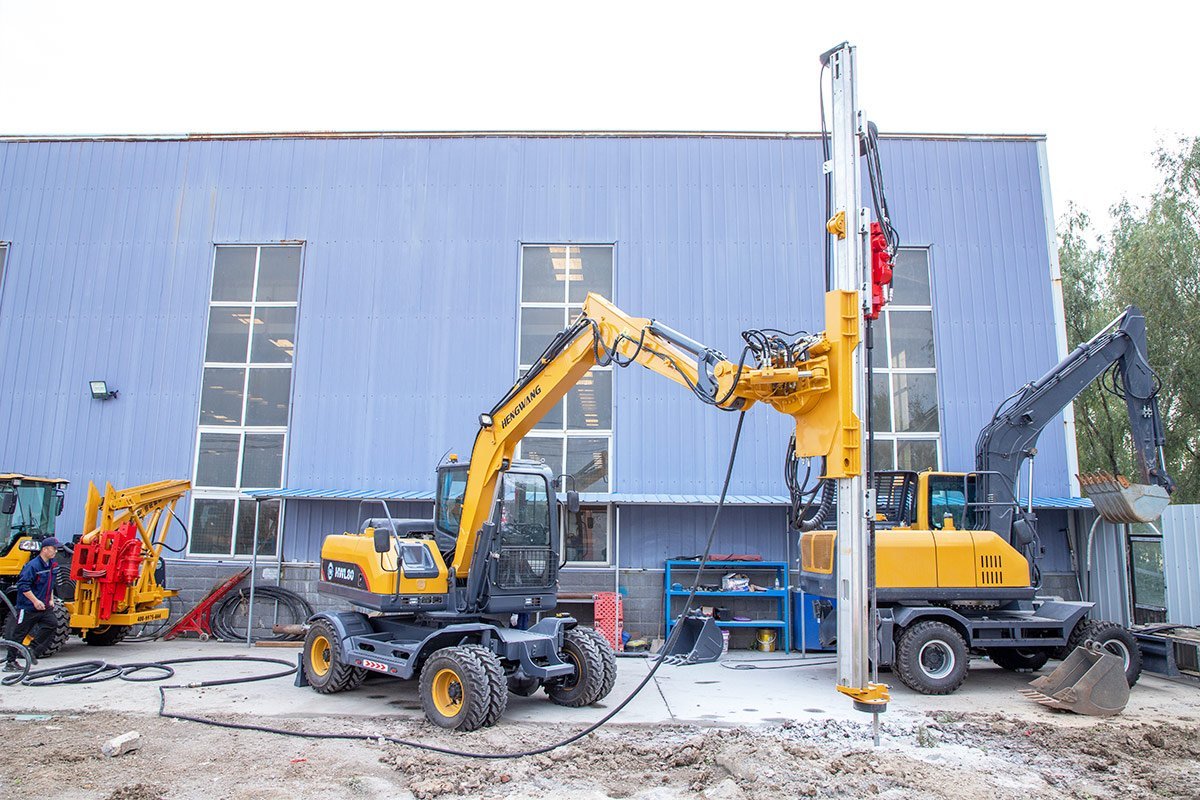

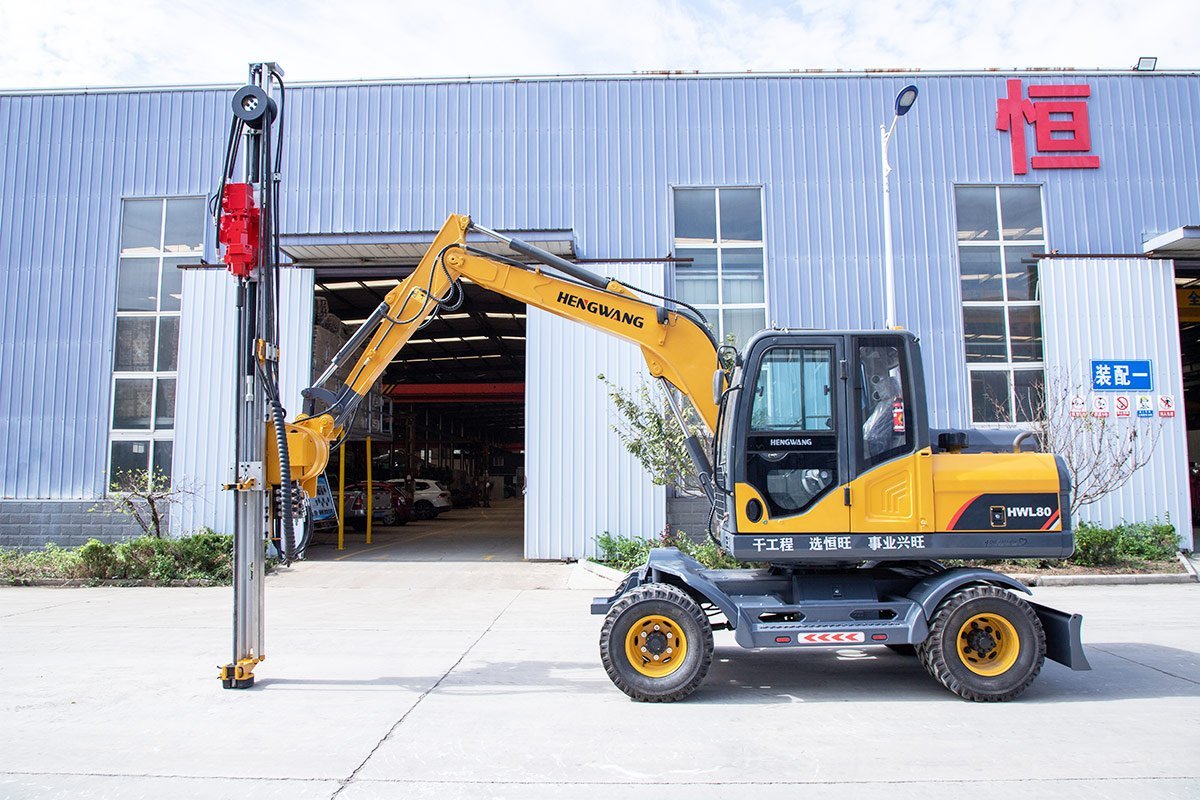

1. The hydraulic system of the excavator is used for the drilling and slag removal of the Hengwang excavation and modification rock drill. The air compressor for slag removal is installed on the excavator, which is convenient to move.
2. The hydraulic rock drill is used to fully improve the drilling efficiency. The drilling speed can reach 1 minute and 1 meter on the rock with a hardness of 8.9 degrees, which is 8-10 times that of pneumatic equipment.
3. Digging and changing the rock drill does not affect the function of the excavator itself, and because the climbing performance of the excavator and the adjustment of the drilling angle are better than the rock drill, it is more flexible.

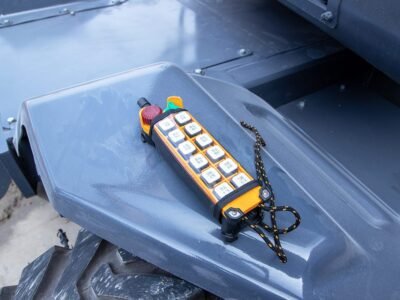

4. The operating panel is placed in the cab of the excavator, and the driver can operate after simple training.
Main features:
1. Utilizes the hydraulic system of the excavator for drilling and slag removal, with the air compressor for slag removal conveniently mounted on the excavator for mobility.
2. Hydraulic rock drill significantly improves drilling efficiency, achieving a drilling speed of 1 meter per minute on rock with a hardness of 8.9, which is 8-10 times faster than pneumatic equipment.
3. The rock drill does not affect the excavator’s functionality, and the excavator’s climbing performance and drilling angle adjustment provide greater flexibility.
4. The operating panel is located in the excavator’s cab, allowing the operator to control the rock drill after simple training.
Parameter
| Model | HW-200 |
| Dimension | 5150*1200*860mm |
| Weight | 1100Kg |
| Impact working pressure | 12-18Mpa |
| Impact frequency | 27-47Hz |
| Rotation speed | 180-220rpm |
| Rotation torque | 300N.M |
| Rotation power | 7Kw |
| Drill diameter | 27-55mm |
| Drill depth | 30m |
Certainly, technological advancements and continuous updates can result in differences between the technical parameters and configuration provided and the actual product delivered. To obtain the most accurate and up-to-date information regarding the specific technical parameters and configuration of a product, it is advisable to consult with the manufacturer or authorized distributors directly. They will be able to provide you with the latest details and assist you in making an informed decision based on your requirements.
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery. /p>
