| model | HW916 | HW916-1 |
| engine | Yuchai YCD4T22T-105A | Yuchai YCD4T22T-105A |
| power KW | 78 | 78 |
| Drill pipe type mm | 60*3000 | 60*3000 |
| Drilling diameter mm | 90-100 | 90-100 |
| Maximum working torque N.m | 2400 | 2400 |
| Swing speed rpm | 0-150 | 0-150 |
| Propulsion kN | 15 | 15 |
| Lifting power kN | 25 | 25 |
| Propulsion method | oil cylinder chain | oil cylinder chain |
| Walking speed km/h | 2 | 3 |
| Gradeability | 30 | 30 |
| gross weight kg | 4800 | 4800 |
| Shipping dimensions mm | 5700*2100*2600 | 5700*2100*2600 |
| Dust collection method | detachable | Dry dust collection |

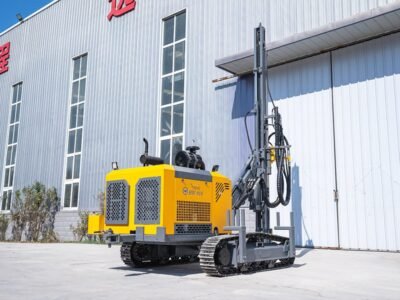

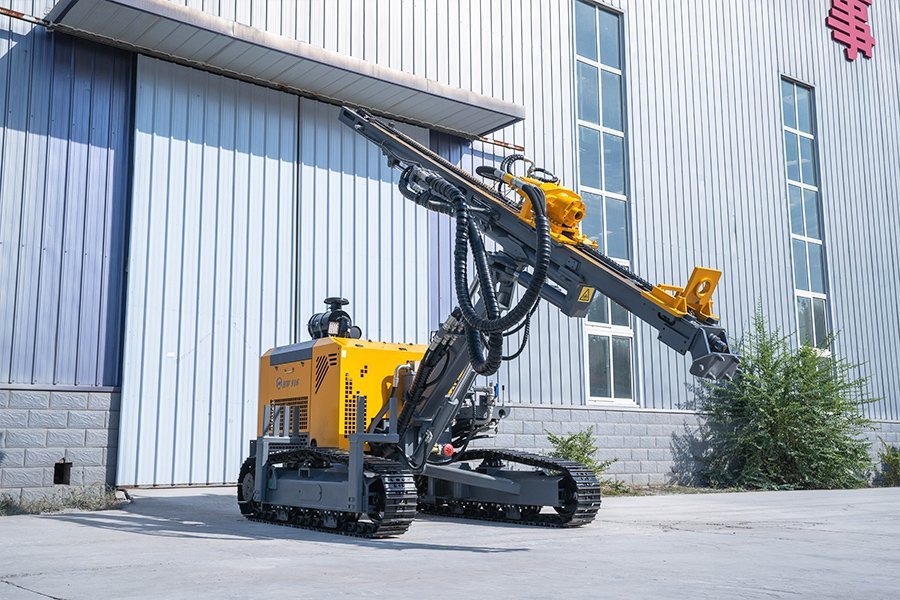

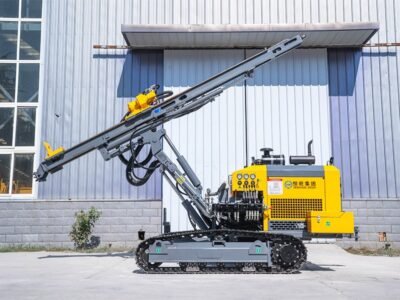

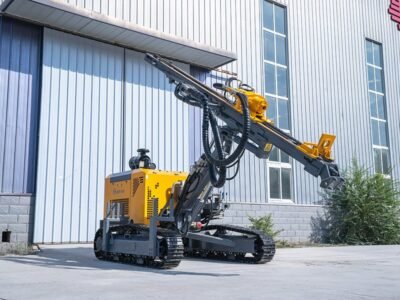

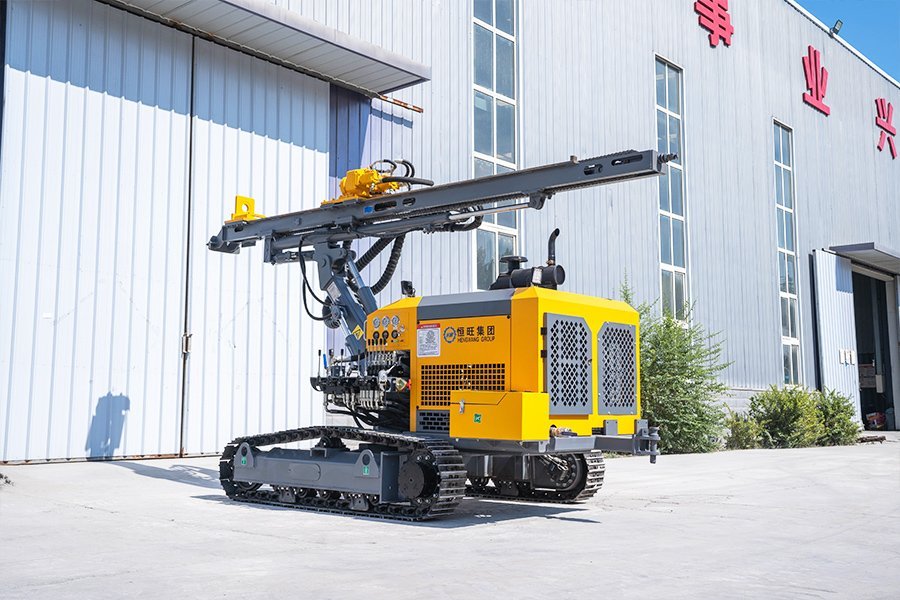

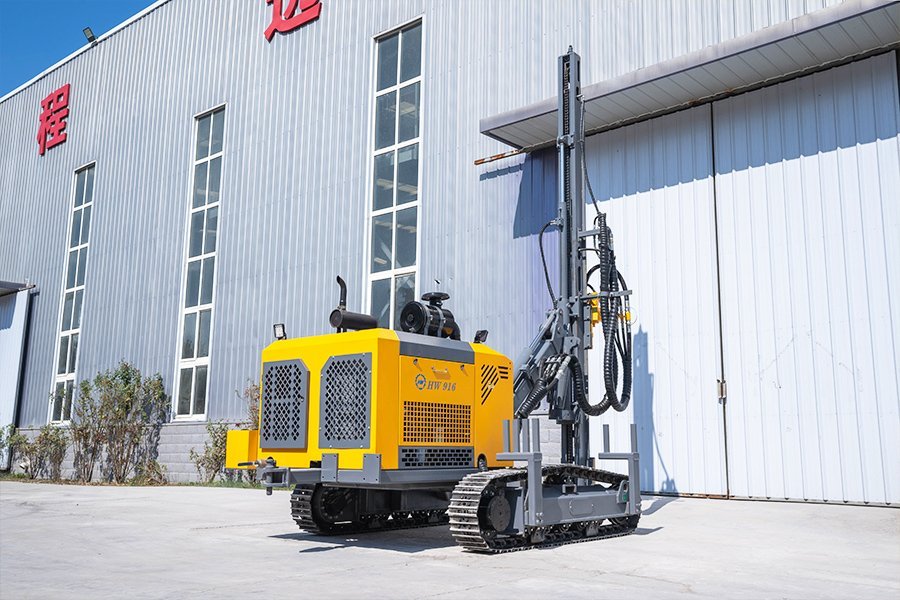

Hengwang DTH drilling rigs are a new generation of drilling rigs designed for small and medium-sized quarries and contractors.The rig body is perfectly matched to the DTH bit, giving the rig unique productivity and keeping fuel consumption and operating costs to a minimum.Main feature:1. It is designed for drilling 90-127mm.2. Diesel powered down-the-hole (DTH) rigs have excellent maneuverability, smaller footprint and the ability to serve multiple locations.3. HW-916 is a trusted machine for mining and construction companies and contractors engaged in presplitting and conventional production blasthole drilling.Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
