Product Information
Main feature:
1.Pneumatic water well drilling rig with fast drilling speed and low fuel consumption per unit.
2.Crawler type chassis for improved off-road performance.

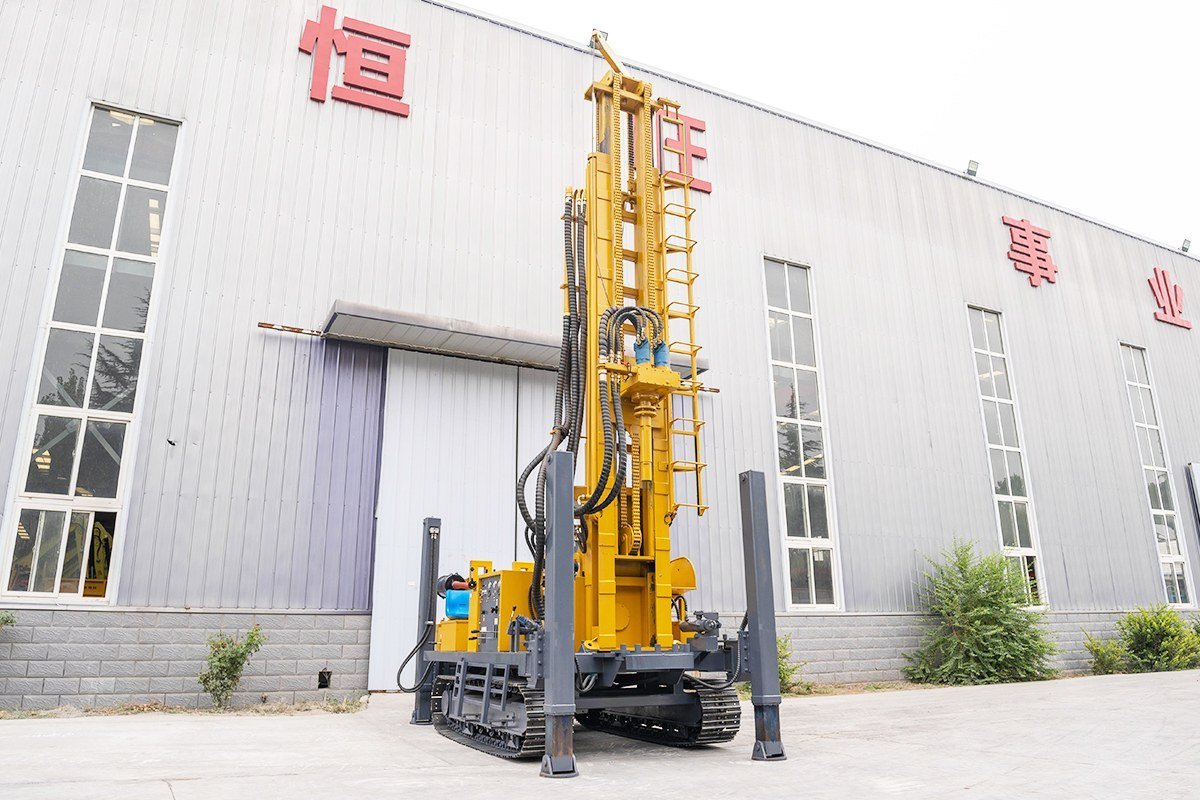

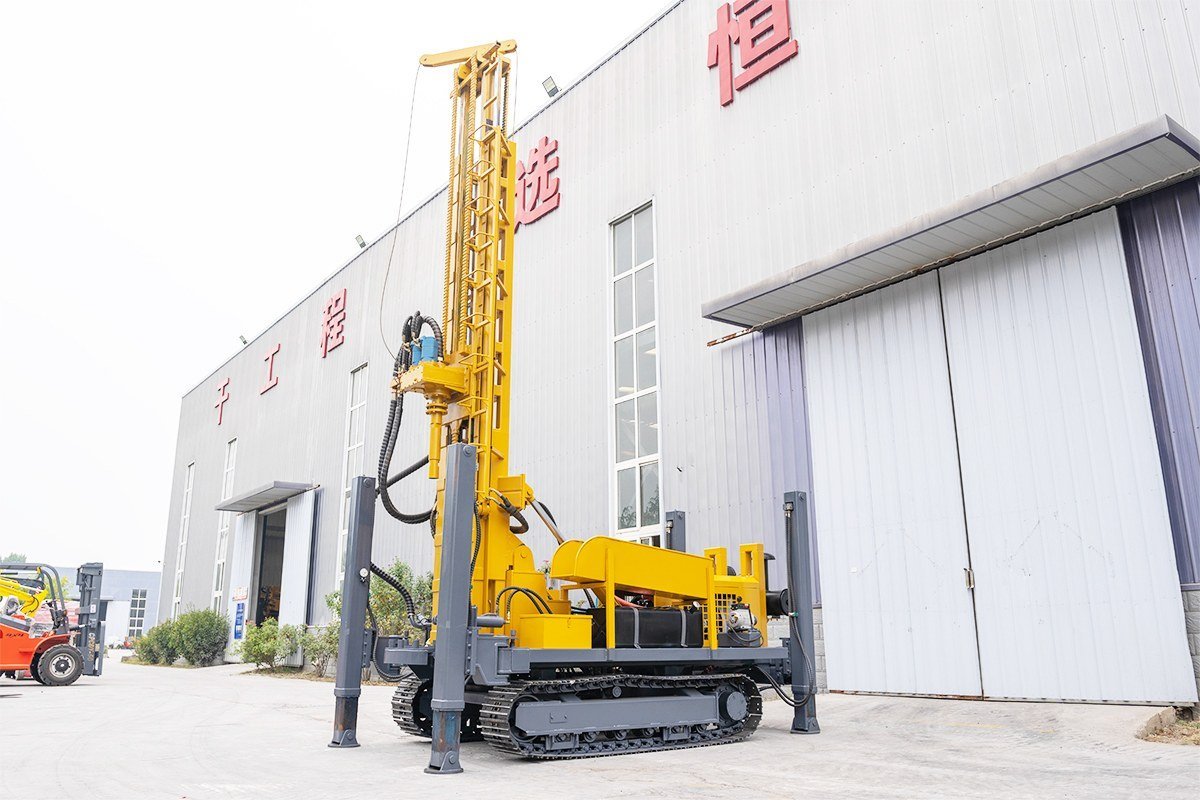

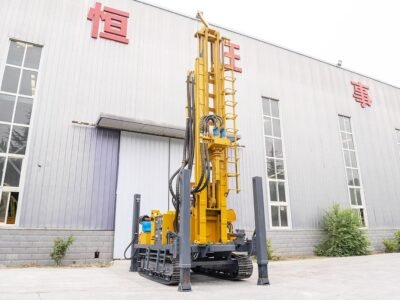

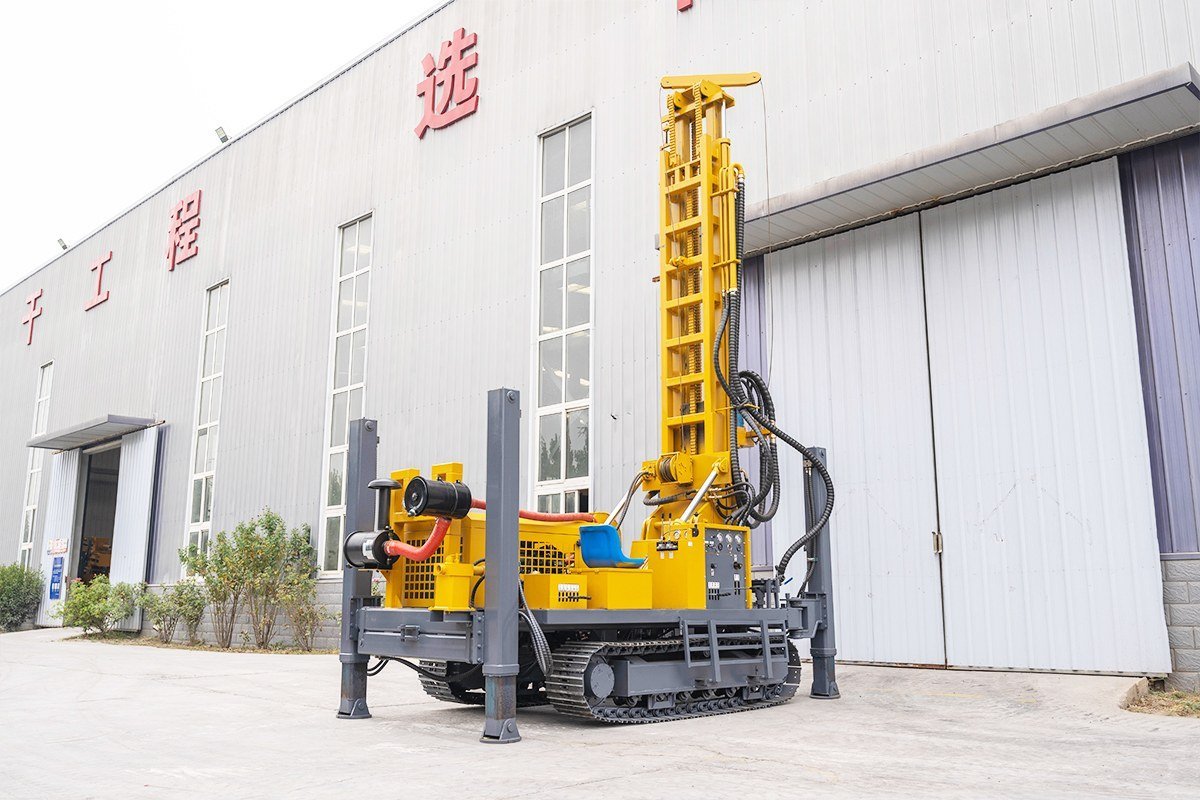

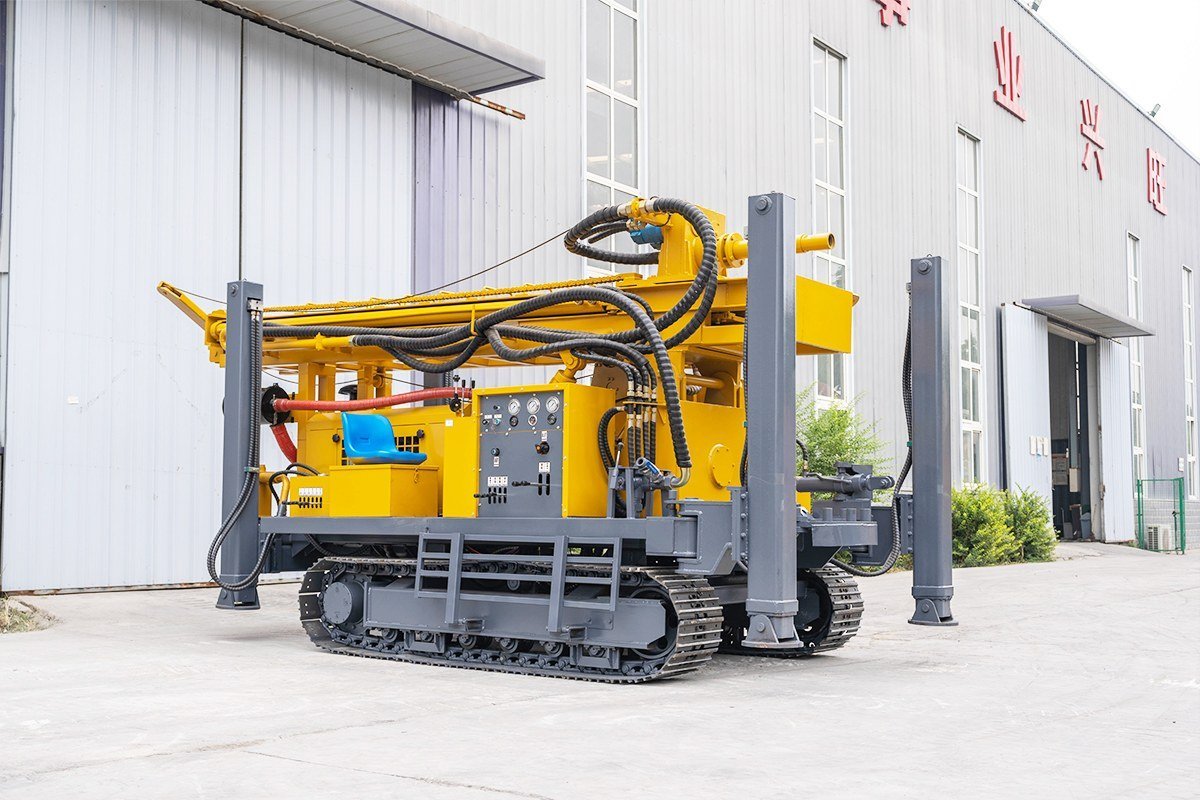

HQZ pneumatic water well drilling is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
Submit the form to get the latest parameters and quotes.
| model | HQZ-400L | |
| tower | 3/6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-325 | mm |
| Drilling depth | 400 | m |
| One-time advancement length | 3.6/6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 92/110 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-35 | m3/min |
| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 25 | T |
| Swing speed | 45-115 | rpm |
| Rotating torque | 7000-9000 | N.m |
| Dimensions | 5400*2200*2870 | mm |
| weight | 7/9 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery. /p>
Submit the form to get the latest parameters and quotes
