Product Information

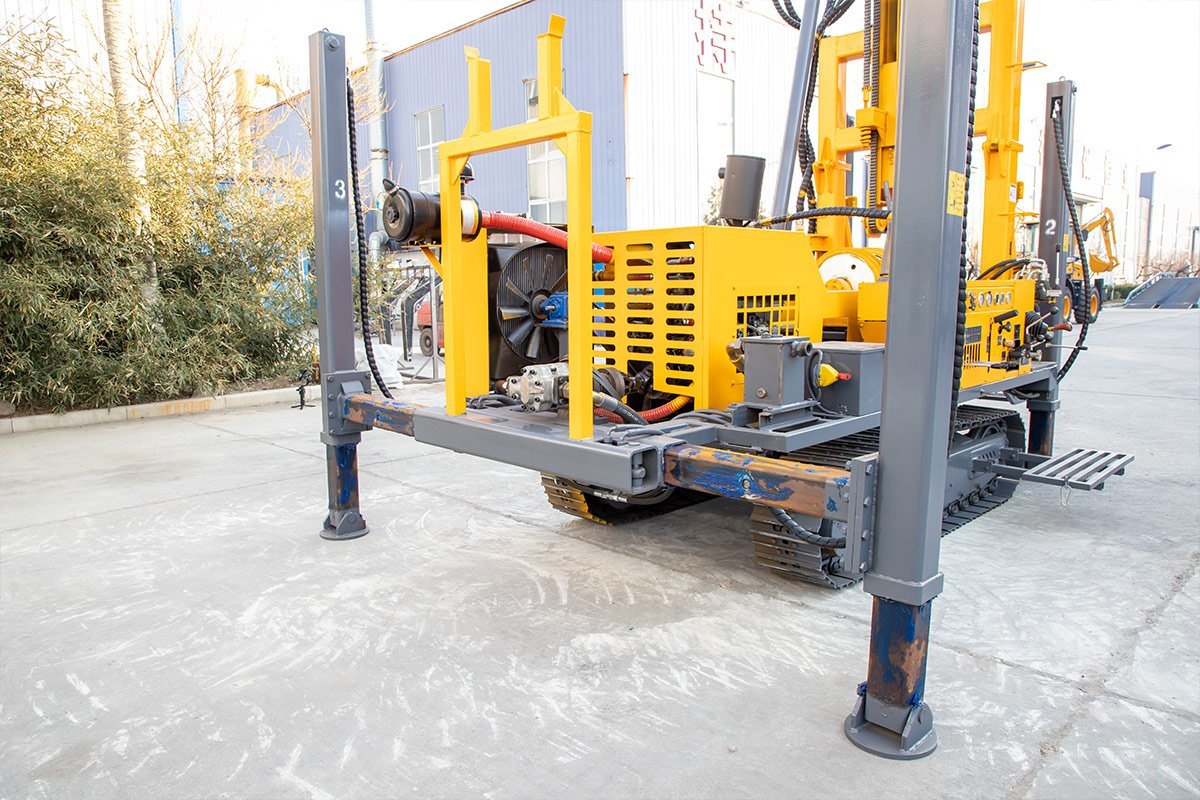

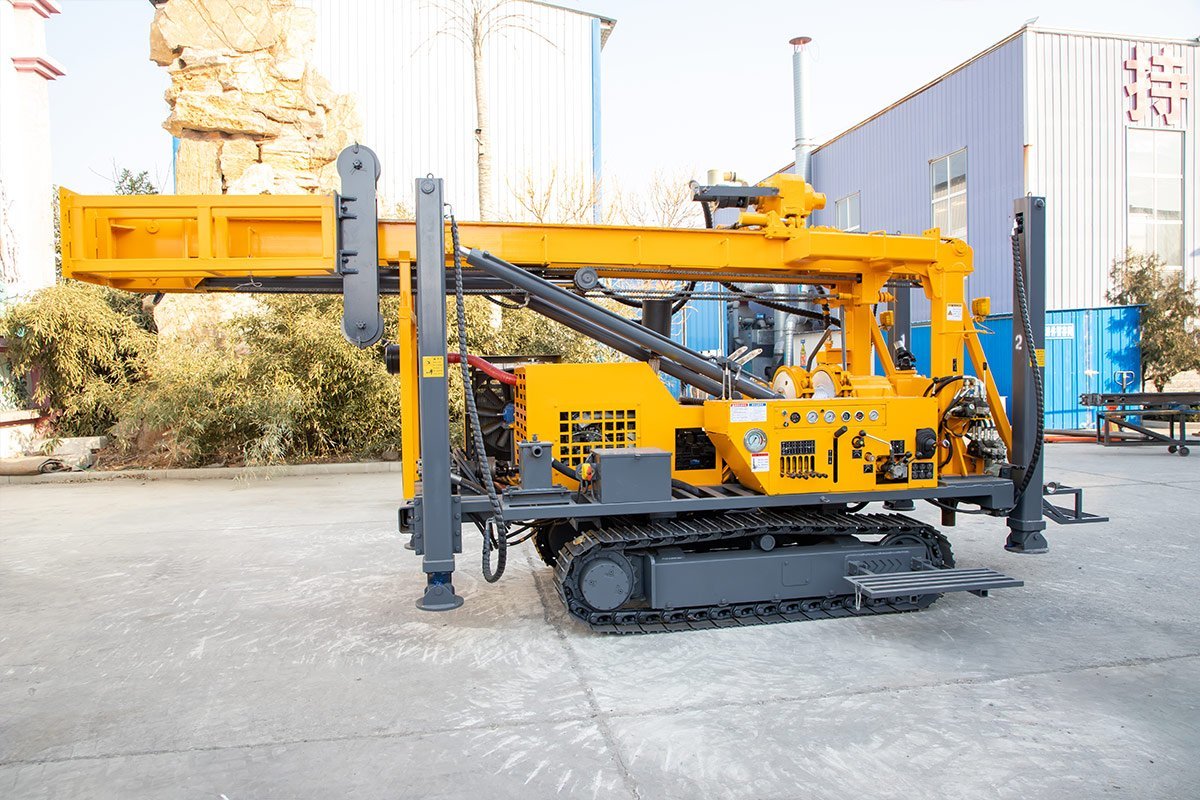

HWDL-350 series drilling rig is a high-efficiency and multi-functional drilling equipment, mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations.
Main feature:
1. Reasonable power engine can save fuel while ensuring stable and high performance;
2. High-quality hydraulic components and strict assembly process ensure the high efficiency of the hydraulic system;
3. Using international high-standard raw materials to ensure the stability of the car body;
4. The design has an industrial aesthetic.
| Model | HWDL350 |
| Drilling depth | 300m (152mm~203mm) |
| Rope core-drilling 75mm bore diameter | 450~500m |
| Drilling diameter | 5 50mm |
| Drilling angle | 90 |
| Mud pump | BW160/ BW200/ BW250 |
| Walking Speed | 0 2 km/h |
| Gradeability | Max. 25 ~30 |
| Transport dimension | 5400*1600*2600mm |
| Working state dimension | 3480*1600*7300mm |
| Machine weight | 5800kg |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery. /p>
