Product Information

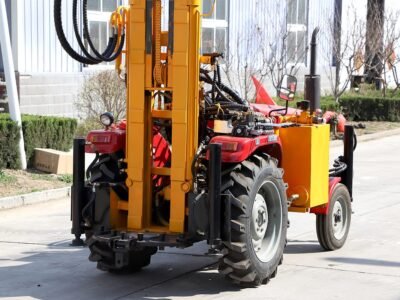

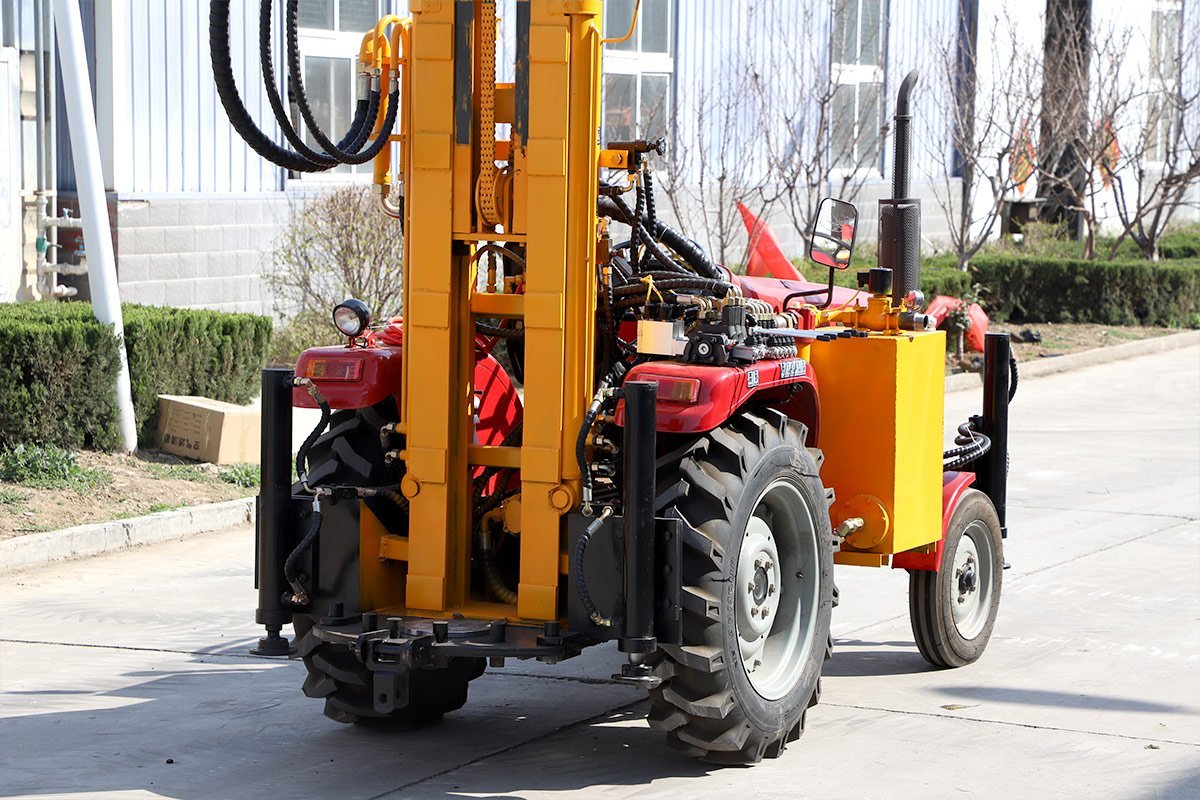

Heng wang water well drilling rig is an integrated drilling equipment by combining tractor and pneumatic water well drilling rig, which is easy to walk and combined the air compressor. /p>
Suitable for industrial, civil drilling and geothermal drilling projects.The main feature of pneumatic drilling rigs is strong power, and the efficiency is 10 to 15 times that of ordinary hydraulic wells.
Main features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Tracked chassis improves off-road performance;
3. The body is compact and easy to transport.
Parameter:
| Model | TQZ-260 |
| Overall weight (T) | 4 |
| Dimension (mm) | 3800*1700*2700 |
| Drilling diameter (mm) | 130-254 |
| Drilling depth (m) | 260 |
| One-time advance length of the drill (mm) | 1500 |
| Traveling speed (km/h) | 30 |
| Climbing capacity (max) | 25 |
| Minimum round learance (mm) | 250 |
| Working Air Pressure (mpa) | 1.7-2.5 |
| Air consumption (m3/min) | 17-31 |
| Main machine power (HP) | 40 |
| Rotation speed (pm) | 40-65 |
| Rotary torque (Nm) | 4000 4700
|
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery. /p>
Submit the form to get the latest parameters and quotes.
