Product Information
1. Remarkable Working Range:

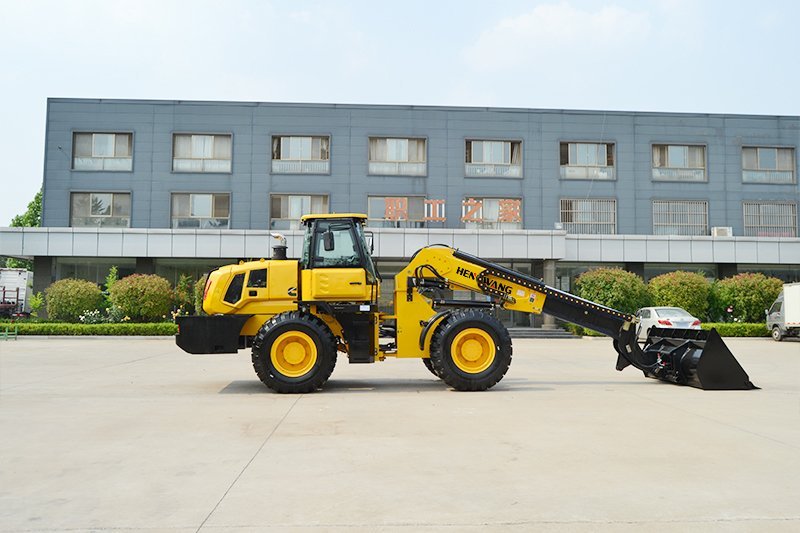

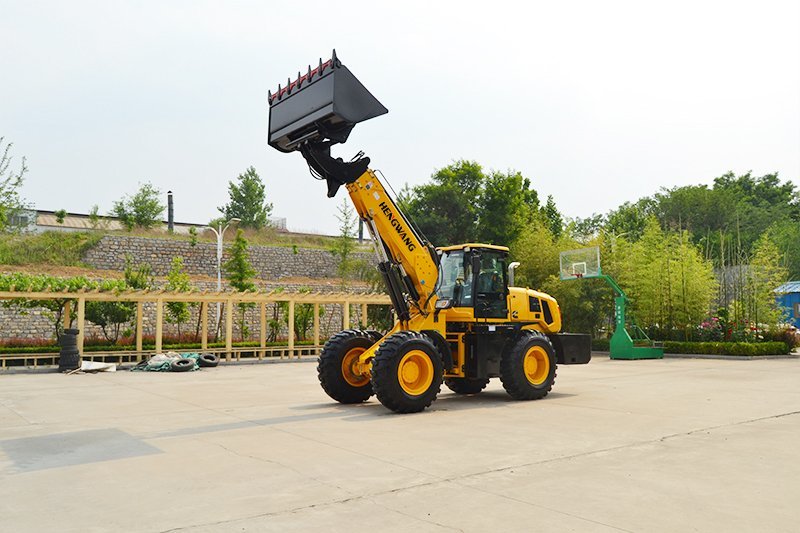

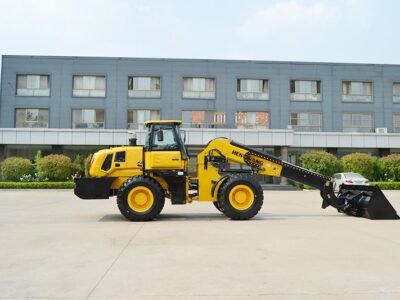

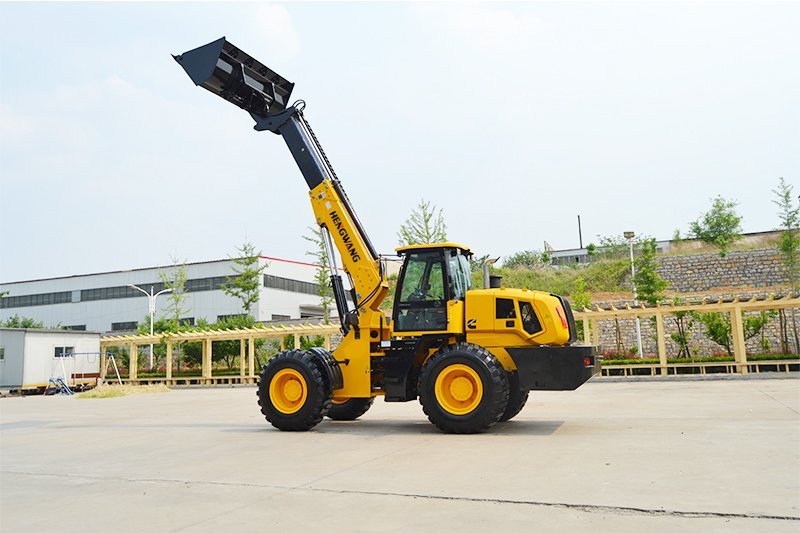

The telescopic boom, with a reach of 6 meters, significantly expands its working scope, enabling you to handle a variety of tasks effortlessly.
2. Powerful and Agile Design:
The articulated structure and axle transmission design contribute to its power and superior pass-through ability, making it adept at navigating diverse terrains.
3. Reliability with Overseas Quality:
The seals, valves, and joystick handle are sourced from renowned overseas manufacturers, ensuring a reliable and long-lasting machine.
4. Comfortable Operation:
An adjustable spring seat and optional air conditioner enhance operator comfort, making extended operation sessions more pleasant.
5. Convenient and Safe Operation:
The wide-view cabin and dual entrances provide convenience and safety during operation, giving operators optimal visibility.
6. Easy and Convenient Operation:
The quick coupling system, mechanical joystick, and user-friendly buttons streamline the operation, making it both easy and convenient.
7. Simplified Maintenance:
The rear cover can be easily opened as a whole part by hand, simplifying maintenance procedures and minimizing downtime.
| HW3500 | |
| 1.0 Engine | |
| (1) rand/Model | WEICHAI / WP6G125E22 /td> |
| (2) ype | In-line arrangement, water-cooled, ix cylinder turbocharged iesel ngine |
| (3) Rated ower | 92KW |
| (4) ptional odel | CUMMINS |
| 2.0 verall Dimensions | |
| (1) Overall ength | 7500mm |
| (2) Overall idth | 2280mm |
| (3) Overall eight | 3200mm |
| (4) ucket hinge pin eight | 6000mm |
| (5) ptional bucket hinge pin eight | 7000mm |
| 3.0 Transmission System | |
| 315 Gearbox+hydraulic converter + rive shaft +28 ub eduction axle | |
| 4.0 Bucket | |
| (1) Capacity | 1.7m3 |
| (2) idth | 2300mm |
| (3) ype | Heavy-duty bolt on teeth |
| (4) ax. oad | 3000kg including ucket or ttachment |
| 5.0 Operating Specifications | |
| (1) teering System | Articulated hydraulic steering |
| (2) riving System | Four wheel drive |
| (3)Hydraulic uick elease | Yes |
| (4)Hydraulic pilot joystick | Yes |
| (5) Steady rise | Yes /td> |
| 6.System pressure | 20Mpa |
| 7. eight | 8000KG |
